Planet

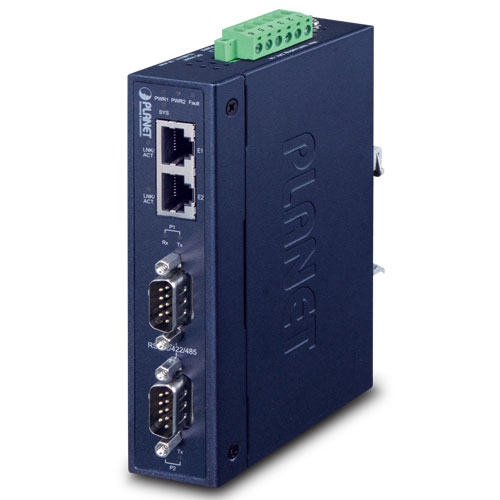

Planet ICS-2200T

Artikelnr. Pl_ICS-2200T

  • 2-port serial device server
  • RS232/RS485/RS422
  • Web management
  • Industrial IP30 casing
€ 229,00 excl. btw€ 277,09 incl. btw

Op voorraad (2)

Bestel nu, wij verzenden maandag.

2 op voorraad (kan nabesteld worden)

Frans MaasGecontroleerd doorFrans Maas

Specificaties

Serial Interface
Serial Ports2 x DB9 male
Serial StandardsRS232/RS422/4-wire RS485/2-wire RS485
Baud Rate (Data Rate)50bps to 921Kbps
Data Bits5, 6, 7, 8
Parity Type1, 1.5, 2
Stop BitOdd, Even, None, Space, Mark
Flow ControlRTS/CTS and DTR/DSR (RS232 only) XON/XOFF
SignalsRS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS422: Tx+, Tx-, Rx+, Rx-, GND 4-wire RS485: Tx+, Tx-, Rx+, Rx-, GND 2-wire RS485: Data A (+), Data B (-), GND

Toepassingen

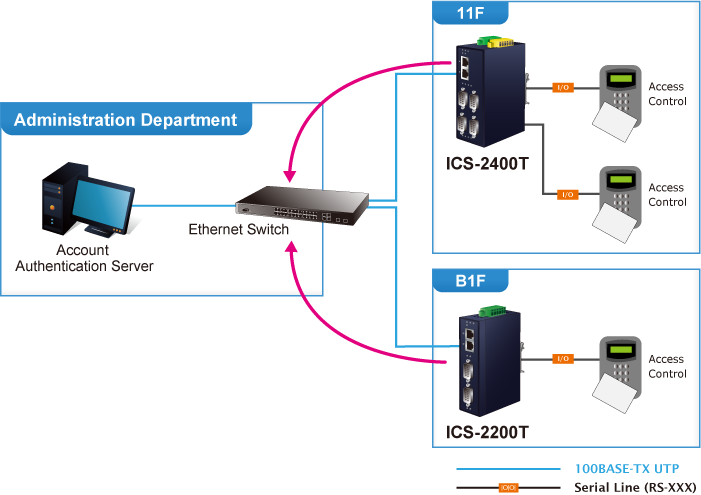

  • Access Control System – Traditional System Application
  • Most of the enterprises and government use access control plate and Mifare or RFID to authorize entrance identity. Traditionally, the access control machines use RS232 or RS485 serial interface with their cables connecting to login server. By applying the ICS-2200T, the access control machine is able to extend the network over longer distances via Ethernet interfaces. In addition, the ICS-2200T can be linked to an xDSL router to get the internet access capability so that the access control can be set and monitored over the internet.
  •
  • Process Control
  • To monitor, configure and manage the robotic conveyer including other production machines, PLC (Programmable Logical Control) is required to drive the above manufacturing process. The ICS-2200T can be set to the TCP Server mode and connected to the PLC.  Thus, the administrator can configure and set command settings through Fast Ethernet intranet to remotely control the PLC, without having to stand by the I/O machine.
  •

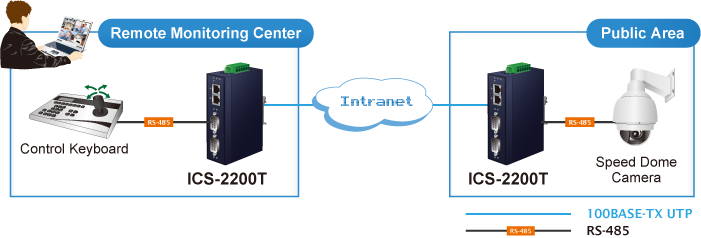

  • Surveillance Motion Control – Pair Connection Mode
  • Using pair connection mode via the fiber optical patch cord, the ICS-2200T can extend the distance of the deployed devices via RS232, RS422 and RS485 interfaces, making the remote management of these devices from the monitoring center easier and efficient.

Omschrijving

Cost-effective Solution for RS232/422/485 Serial-to-Industrial Ethernet Application

PLANET ICS-2200T Serial Device Server is specially designed to convert RS232, RS422 or RS485 serial communication to Industrial Fast Ethernet networking. This as to extend the network distance efficiently and inexpensively. There are two 10/100BASE-TX RJ45 ports available in the ICS-2200T for your network needs. The ICS-2200T is a time-saving and cost-effective solution for users and system integrators to quickly transform their serial devices into the Ethernet network. This with no need of replacing the existing serial devices and software system.

Planet ICS-2200T Integrate Legacy Serial Devices into IoT

Remote Management

The ICS-2200T provides an easy serial-to-Ethernet connectivity and connection to a TCP/IP network. The remote network system can thus be managed efficiently via its Web, telnet and VCOM management interfaces. It supports both application and serial operation modes for alarm or IP address connection. This saves the network administrator’s time in detecting and locating network problems without visual inspection of the cabling and devices.  Multiple connection options are available for large networking environment as well.

Planet ICS-2200T Remote management

Stable Performance under Difficult Environments

The ICS-2200T provides a high level of immunity against electromagnetic interference and heavy electrical surges. These are usually found on plant floors or in curbside traffic control cabinets. Its operating temperature ranging from -40 to 75 degrees C allows the ICS-2200T to be placed in almost any difficult environment.

The ICS-2200T, equipped with compact IP30 standard metal case, allows either DIN-rail or wall mounting for efficient use of cabinet space.  The ICS-2200T also provides an integrated power supply source with a wide range of voltages (12 to 48V DC). This makes it ideally suitable for worldwide operation with high availability applications requiring dual or backup power inputs.



Dual Power Input for High Availability Network System

The ICS-2200T features a strong dual power input system with wide-ranging voltages (12V~48V DC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when Power Supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the ICS-2200T via Power Supply 2 without any break of operation.

Effective Alarm Alert for Better Protection

The ICS-2200T comes with a Fault Alarm feature. This alarm can alert the users when there is something wrong with the Serial Device Server. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource. The ICS-2200T provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.

Planet ICS-2200T Fault Alarm Feature
