Patchkabel LC-LC SM Dual core
€ 9,79 (excl. btw)
€ 11,85 (incl. btw)
– LC-LC
– 3 meter
– Single Mode
– Dual Core
– Non-armoured
4 op voorraad

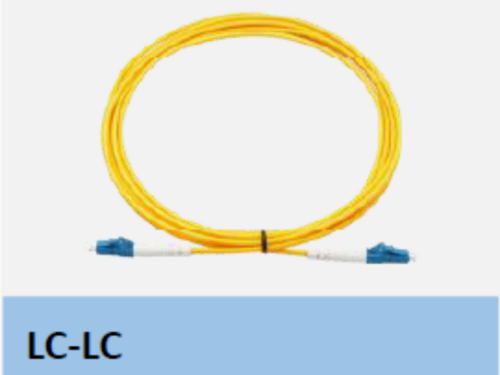

Glasvezel patchkabel met aan beide zijden een LC connector.
Het betreft een Dual core kabel, single mode.
Het is een gele kabel van 3 meter lengte.
Merk: Scodeno
specifications
1. Joint type 01: LC/ upc-sc /UPC, SM DX
2. Fiber type 02:
Wire type: Φ 3.0 mm, G652d 9/125
Coating Material: PVC
Color: yellow
3. Line length: 3M
Performance
1. Insertion loss: < 0.3db
2. Return loss: ≥50dB
3. Extensibility: -0.05um < H <+0.05um
4. End face radius: 7 < R < 20mm
5, vertex offset: < 50um
6. The maximum insertion loss increase after 500 times of unplugging shall not be greater than: 0.2db
7. Operating temperature: -20℃ to +70℃
8. Storage temperature: -40℃ to +80℃
9. Non-condensing humidity 95%RH
Wees de eerste om “Patchkabel LC-LC SM Dual core” te beoordelen
