Planet FSD-2405
€ 35,00 € 29,00 (excl. btw)
€ 35,09 (incl. btw)
– 24-poort 10/100Mbps Switch
– Desktop design
– Metalen behuizing
– 3.2Gbps Switching Fabric
5 op voorraad
High-Speed 10/100Mbps Workgroup Switch
The PLANET FSD-2405 is a 10/100Mbps Fast Ethernet Switch with 16 ports which are respectively cost-effective. The Fast Ethernet Switch can boost bandwidth, eliminate unnecessary traffic, and relieve congestion to critical servers. The Fast Ethernet Switch has 8K MAC Address table and provides 3.2 Gbps switching capacity, and it also offers wire-speed packets transfer performance without risk of packet loss. Therefore, the Switches will be recognized quickly as one of the most important building blocks for networking technology today.
Flexible Size Design – Desk-top and Rack-mountable
With concepts of “Easy to Install and use”, “Compact sized design”, and “Simple troubleshooting”, PLANET FSD-2405 provides cost-conscious business and home users with the foundation from an integrated system of small-office / home-office networking. The Compact-size design makes the Desktop Switch fit into space-limited environment. With included rack brackets, the PLANET FSD-2405 is also rack-mountable for 19-inch cabient.
Plug and Play
All RJ-45 copper interfaces support 10/100Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 5 or 3 cables. Supporting standard for Auto-MDI / MDI-X can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. The Flow Control function allows that Fast Ethernet Switches support routers and servers for directly connecting to this Switch with fast and reliable data transfer.
Wees de eerste om “Planet FSD-2405” te beoordelen
Hardware Specification :-
Network Connector :- 24-Port RJ-45 for 10/100Base-TX
Switch Fabric :- 4.8Gbps
Switch Throughput :- 3.57Mbpps
MAC Address :- 8K MAC address table with Auto learning function
Shared Buffer :- 1.25Mbits
Power Requirement :- 100240V AC, 50 / 60Hz
Operating Environment :- 050 Degree C, 590% RH
Storage Environment :- -4070 Degree C, 590% RH
Dimension (W x D x H) :- 280 x 170 x 44 mm, 1U height, rack mount
Switch Specification :-
Switch Architecture :- Store-and-Forward
Flow Control :- IEEE 802.3x full duplex operating and flow control
Packet Control :- Runt & CRC filtering, Broadcast storm control
Standard Compliance :-
Network Standard :-
- IEEE 802.3?10Base-T
- IEEE 802.3u?100Base-TX
- IEEE 802.3x?Flow Control and Back pressure
EMI :- FCC Class A, CE
Gerelateerde producten
Aanbiedingen
– 12-poort 10/100TX 802.3at PoE
– 4-poort 10/100TX 802.3bt PoE+
– 2-poort Gigabit TP
– 2-poort SFP voor GBic
– LCD management
€ 259,00 € 229,00 (excl. btw)
€ 277,09 (incl. btw)
Planet
– High Power PoE injector
– Gigabit
– Mid-span
– 30 Watt
€ 36,59 (excl. btw)
€ 44,27 (incl. btw)
Planet
– PoE Injector HUB 30Watt
– 12-port
– Managed
– Gigabit
– PoE Budget 220 Watt
€ 259,00 (excl. btw)
€ 313,39 (incl. btw)
Aanbiedingen

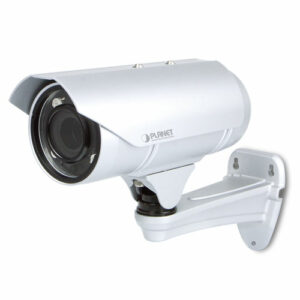

– H.264, MPEG-4, M-JPEG compr
