Planet ICS-2102TS

Watch out – this item is the Planet ICS-2102TS below is the description for three different units.
The Planet ICS-2102TS has a 100FX SC, SM/30km.

Cost-effective Solution for RS232/422/485 Serial-to-Industrial Ethernet Application

PLANET ICS-210xT Serial Device Server series is specially designed to convert RS232, RS422 or RS485 serial communication to Industrial Fast Ethernet networking. So as to extend the network distance efficiently and inexpensively. There is one 100BASE-FX single-mode/multi-mode media available in the ICS-210xT series. It’s operating temperature ranges from -40 to 75 degrees C for your network needs. The ICS-210xT series is a time-saving and cost-effective solution for users and system integrators. They can quickly transform their serial devices into the Ethernet network with no need of replacing the existing serial devices and software system.

For the complete range of industrial products on shop4power click here: https://shop4power.nl/s/industrieel-ethernet/

Efficiently Extend Network Distance

The Planet ICS-2105AT especially equips one fiber interface (100BASE-FX, choice of fiber-connector from SC / LC, multi-mode / single-mode fiber). With this it is able to extend the distance of deploying serial equipment and hosts. Users are able to select fiber-optic cables (based on distance) provided for distance extension from 2 kilometers (via multi-mode fiber) to 60 kilometers (via single-mode fiber) or longer.

Remote Management

As the ICS-210xT series provides easy serial-to-Ethernet connectivity and connection to a TCP/IP network, the remote network system can thus be managed efficiently. It can be done via its Web, telnet, and VCOM management interfaces. It supports both application and serial operation modes. These modes are for alarm or IP address connection, which saves the network administrator’s time in detecting and locating network problems without visual inspection of the cabling and devices. Multiple connection options are available for a large networking environment as well.

Stable Performance under Difficult Environments

The ICS-210xT series provides a high level of immunity against electromagnetic interference and heavy electrical surges. These are usually found on plant floors or in curbside traffic control cabinets. Its operating temperature ranging from -40 to 75 degrees C allows the ICS-210xT series to be placed in almost any difficult environment.

The ICS-210xT series with compact IP30 standard metal case allows either DIN-rail or wall mounting for efficient use of cabinet space. The ICS-210xT series also provides an integrated power supply source. This source has a wide range of voltages (9 to 48V DC/24V AC) ideally suitable for worldwide operation with high availability applications requiring dual or backup power inputs.

Dual Power Input for High Availability Network System

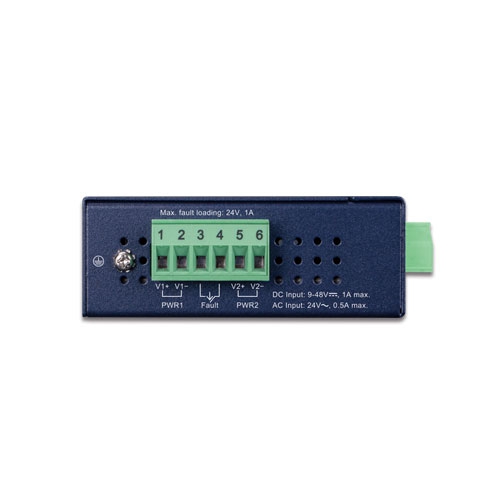

The Planet ICS-2105AT features a strong dual power input system. It has wide-ranging voltages (9V~48V DC/24V AC) incorporated into customer’s automation network. This to enhance system reliability and uptime. In the example below, when Power Supply 1 fails to work, the hardware failover function will be activated automatically. This to keep powering the ICS-210xT series via Power Supply 2 without any break of operation.

Effective Alarm Alert for Better Protection

The ICS-210xT series comes with a Fault Alarm feature. This feature can alert the users when there is something wrong with the Serial Device Server. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource. The ICS-210xT series provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.
