Planet IGT-2205AT-E

Flexible, Reliable and Industrial-grade Network Distance Extension Solution

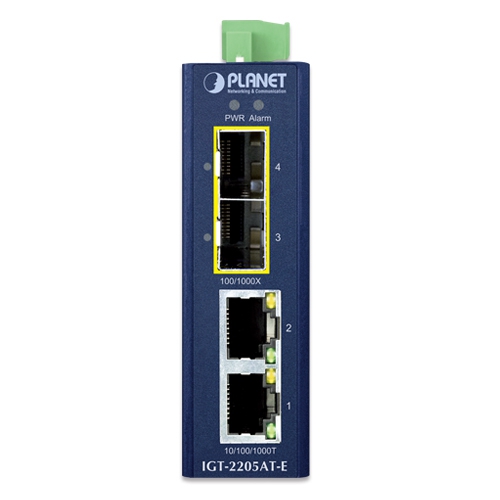

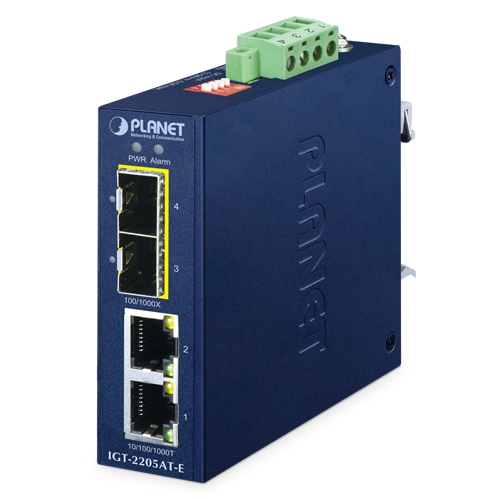

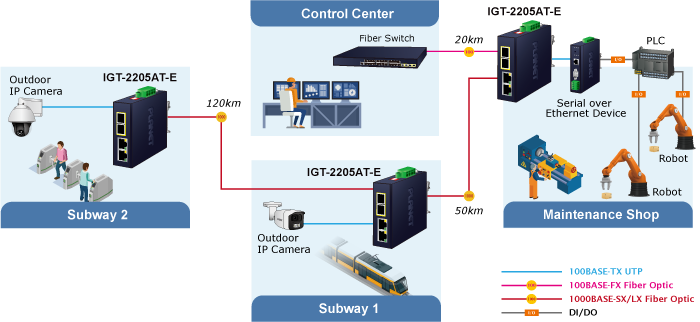

PLANET IGT-2205AT-E is an industrial-grade Gigabit media converter that provides non-blocking wire-speed performance and high flexibility for extending Gigabit Ethernet in harsh industrial environments. It is equipped with two 10/100/1000BASE-T RJ45 copper ports and two 100 / 1000BASE-X SFP fiber optic interfaces, enclosed in a rugged IP40-rated case with a redundant power system. The IGT-2205AT-E is ideal for applications such as surveillance deployment, industrial control, and wireless service in environments with extreme temperatures ranging from -40 to 75 degrees C.

Fiber-Optic Link Capability Enables Extension of Network Deployment

The two SFP slots are compatible with 100BASE-FX and 1000BASE-X fiber-optic transceivers. The robust fiber uplink capability ensures stable throughput for all connected network nodes. Gigabit Ethernet transmission can be extended up to 300 meters over multi-mode fiber and up to 10/20/30/40/50/70 kilometers over single-mode fiber. Fast Ethernet can be extended up to 2 kilometers with multi-mode fiber or up to 20/40/60 kilometers with single-mode fiber. This makes it well-suited for use in factory data centers and distribution networks.

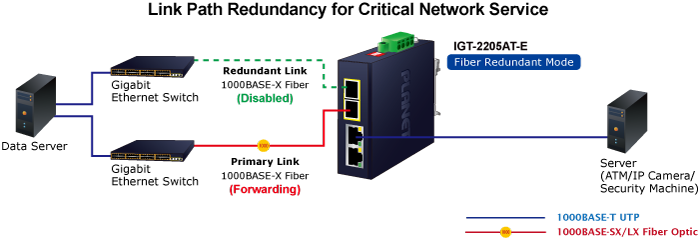

Adjustable 4-port Switch Mode or 2-port Fiber Redundant Mode

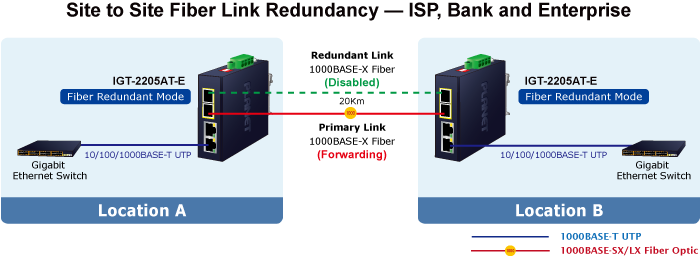

Via the built-in DIP switch, the two SFP fiber interfaces of the IGT-2205AT-E can be configured as Ethernet switch mode or fiber redundant mode. With the Ethernet switch mode, it can operate in Store-and-Forward mechanism with high performance; with the 2-port Fiber redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode supports auto-recovering function. If the destination port of a packet is link-down, it will forward the packet to the other port of the backup pair.

Environmentally Hardened Design

The IGT-2205AT-E is equipped with a slim-type IP40-rated metal case for easy deployment in demanding industrial environments. With IP40 industrial-grade protection, the IGT-2205AT-E provides a high level of immunity against electromagnetic interference and heavy electrical surges typically found on plant floors or in curbside traffic control cabinets. Capable of operating in a wide temperature range from -40 to 75 degrees C, the IGT-2205AT-E can be installed in almost any harsh environment. It also supports both DIN rail and wall mounting, allowing for efficient use of cabinet space.

Convenient and Reliable Power System

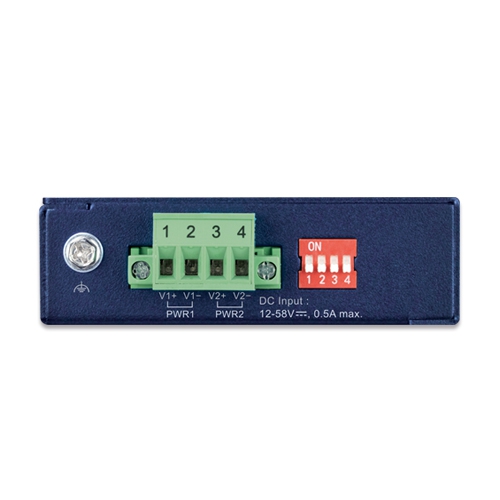

To enhance operational reliability and flexibility, the IGT-2205AT-E is equipped with two DC power input connectors for redundant power installation. It supports a wide input voltage range from 12 to 58V DC, making it suitable for global high-availability applications requiring dual or backup power inputs.

Flexible and Easy Installation with Limited Space

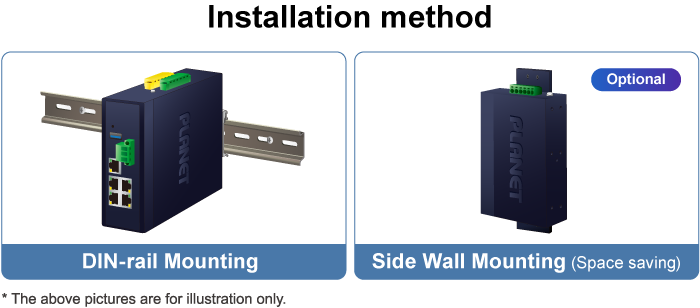

The compact-sized IGT-2205AT-E is specially designed for installation in narrow spaces such as wall enclosures. It can be mounted via wall mounting or DIN rail, offering greater flexibility and ease of installation in space-constrained environments.
