Scodeno 65-5TX-mini
€ 35,70 (excl. btw)
€ 43,20 (incl. btw)
• Din-Rail Industrial mini Switch
• 5-port 10/100T
• Operating Voltage 12-58V DC
• Temp. range -30 ~ +75 degr. C
• IP40 – Fanless design
4 op voorraad (kan nabesteld worden)

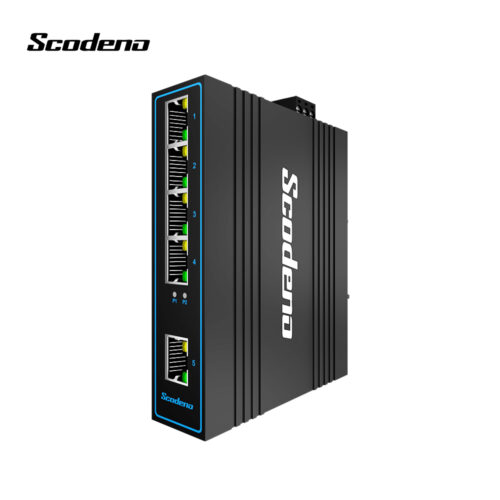

The Scodeno XPTN-9000-65-5TX-mini is a very small 5 x 10/100Base-T port Industrial Ethernet Switch.
Through the fanless heat dissipation circuit design it can be deployed in areas with a wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks.
The extra compact design makes the XPTN-9000-65-5TX-mini very usefull in areas where space is extremely important and rare.
The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.
Wees de eerste om “Scodeno 65-5TX-mini” te beoordelen
|
Provider Mode Ports |
|
|
Fixed port |
5*10/100Base-T |
|
Power interface |
Phoenix terminal, dual power supply |
|
LED Indicators |
P1/P2, OPT |
|
|
|
|
DIP Switch |
|
|
1 LFP |
Reserve |
|
2 LGY |
LEGACY (Standard & Non-standard PoE) |
|
3 VLAN |
Port Isolation |
|
4 BSR |
Storm Control Configuration |
|
|
|
|
Cable Type & Transmission Distance |
|
|
Twisted-pair |
0-100m（CAT5e,CAT6） |
|
Monomode optical fiber |
/ |
|
Multimode optical fiber |
/ |
|
|
|
|
Network Topology |
|
|
Ring topology |
Unsupported |
|
Star topology |
Support |
|
Bus topology |
Support |
|
Tree Topology |
Support |
|
|
|
|
Electrical Specifications |
|
|
Input voltage |
DC12~58V |
|
Total Power consumption |
<5W |
|
|
|
|
Layer 2 Switching |
|
|
Switching capacity |
1G |
|
Packet forwarding rate |
0.744Mpps |
|
MAC address table |
2K |
|
Buffer |
768K |
|
Forwarding delay |
<5us |
|
MDX/MIDX |
Support |
|
Flow control |
Support |
|
Jumbo frame |
2K bytes |
|
Storm Control |
Support |
|
Port-Isolation |
Support |
|
Remote PD Reset |
Support |
|
|
|
|
Environment |
|
|
Operating temperature |
-30℃~+75℃ |
|
Storage temperature |
-30℃~+75℃ |
|
Relative humidity |
10%~90% （non-condensing） |
|
Thermal methods |
Fanless, natural cooling |
|
MTBF |
100,000 hours |
|
|
|
|
Mechanical Dimensions |
|
|
Product size |
91*118*31mm (W×H×D) |
|
Installation Method |
DIN-rail |
|
Weight |
0.36KG around |
|
|
|
|
EMC & Ingress Protection |
|
|
IP Level |
IP40 |
|
Surge protection of Power |
IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us) |
|
Surge protection of Ethernet port |
IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us) |
|
ESD |
IEC 61000-4-2 Level 4（8K/15K） |
|
|
|
|
Authentication |
|
|
Authentication |
CCC/CE/FCC/RoHS |
|
|
|
|
Accessories |
|
|
Accessories |
Device, Terminals, Specification, Certificate Adapter(optional) |
|
|
|
|
Optional Model |
|
|
XPTN-9000-65-5TX-mini |
5*10/100M RJ45 Port |
